GN-805G

GN-805G features

Support GLONASS, GPS, GALILEO, QZSS, SBAS systems (can be set to support Beidou, GPS, BEIDOU, QZSS, SBAS systems) The number of simultaneous tracking satellites is up to 25. Cold start is less than 30s; hot start is less than 2s,

• UART/TTL interface with PPS interface

• Support refresh rate: 10-15Hz setting, single GPS supports 20HZ output

• Built-in 4M fLASH supports setting saving, no data loss when power off.

• Timing accuracy: 50ns

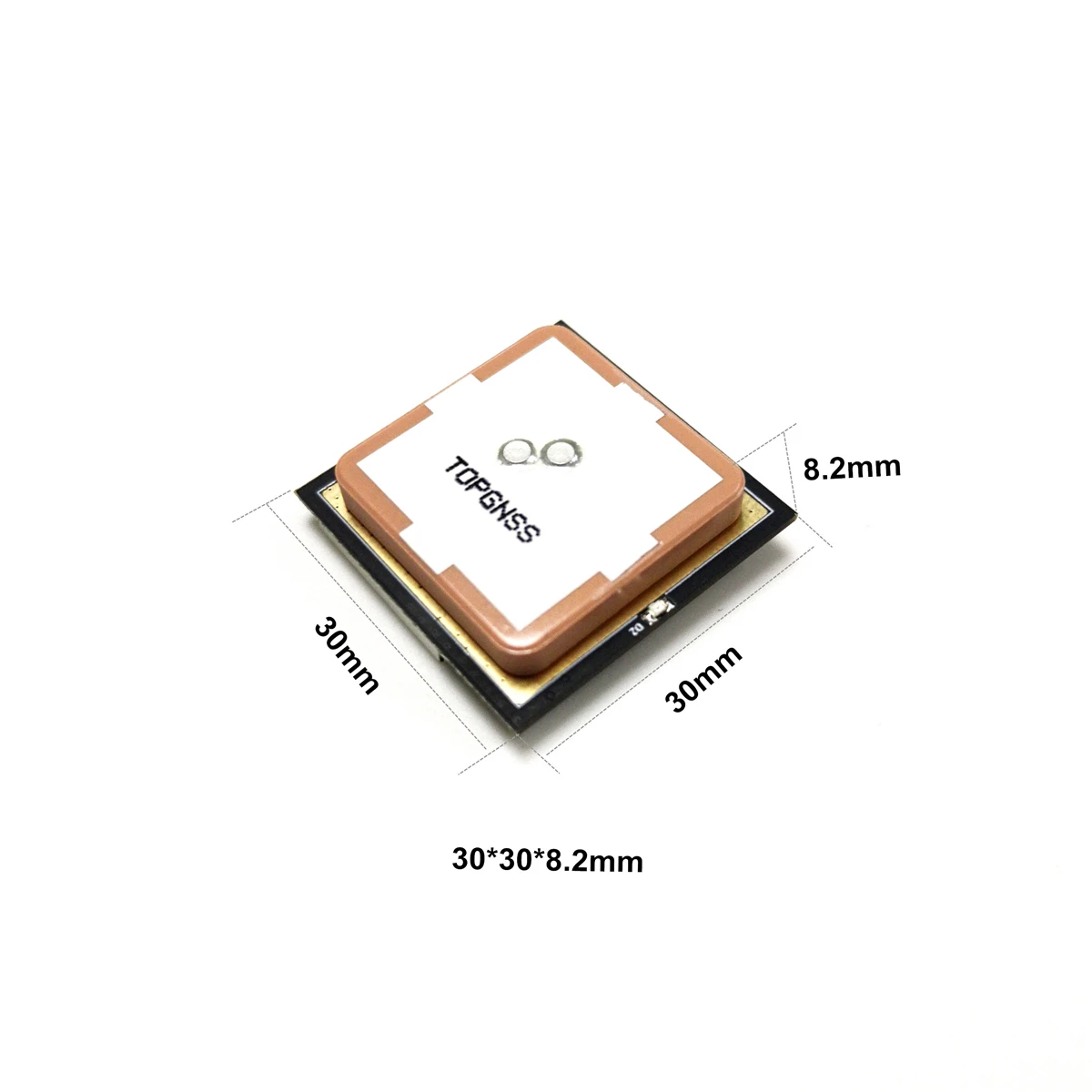

• Small size: 30x30x8.2mm

• LED status indicator, you can observe the module positioning status more intuitively.

• Strong anti-interference, anti-multipath effect

• Superior quality and reliability

Main application of sub-meter GPS module

Car navigation, personal positioning, drone positioning, synchronization timing, track recording, data acquisition, vehicle monitoring, authorization

Detecting balloons at high altitude.

Product description

GNSS single-frequency multi-system sub-meter positioning moduleGN-805G is a high-performance, multi-system single-frequency GNSS navigation and positioning module, which can simultaneously support receiving GPS, GLONASS, GALILEO and QZSS satellite signals.There are more stars, faster positioning, and higher accuracy. The wide-area differential GPS augmentation system is supported by default. [S129,S137.... Wide-area increaseStrong Satellite].

The module has a built-in LNA low-noise amplifier and filtering, a dual-feed point antenna, and a wider bandwidth, so that the signal reception distribution is more even when receiving GNSS satellite signals, so as to achieve more stable signal reception performance and achieve high-precision positioning effects. The module is small in size and light in weight, and can be used in industrial applications such as individuals, vehicles, unmanned aerial vehicles, handheld positioning terminals, and individual positioning systems.

The GN-805G module has the application characteristics of low power consumption, high sensitivity, high precision, and low cost. It is the best choice solution to meet the navigation, positioning, timing, aircraft model and other fields, and can meet the strict application requirements of industrial grade. The GNSS module has a compact size, and the surface adopts a 1.0 6PIN connector and a pad design, which can be more convenient for integration.
